Greenvinci Biomass hot air generator fired Wood chips Rice husk Forestry waste Agricultural waste for greenhouse

FOB Reference Price:Get Latest Price
US $20,000-25,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GV-80-HAG
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Drying Oven, Biomass hot air generator for pure hot air
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GREENVINCI
Voltage:
380V
Power(W):
20KW
Dimension(L*W*H):
1*1*1.5M
Weight:
1t
Certification:
iso
Warranty:
1
After-sales Service Provided:
Engineers available to service machinery overseas
Size:
Large
Cover Material:
Carbon steel
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Safty package
Port
Foshan/Guangzhou /Shenzhen
for Cultivation

Biomass Hot air generator

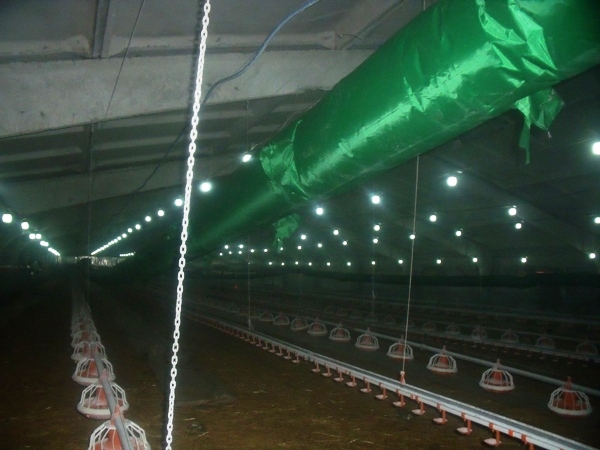

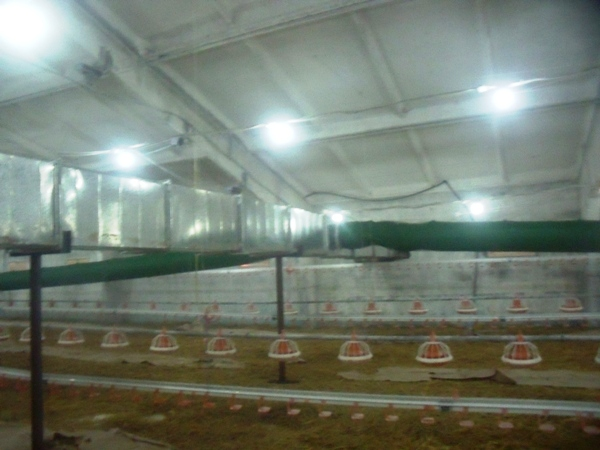

for agriculture,aquaculture warming

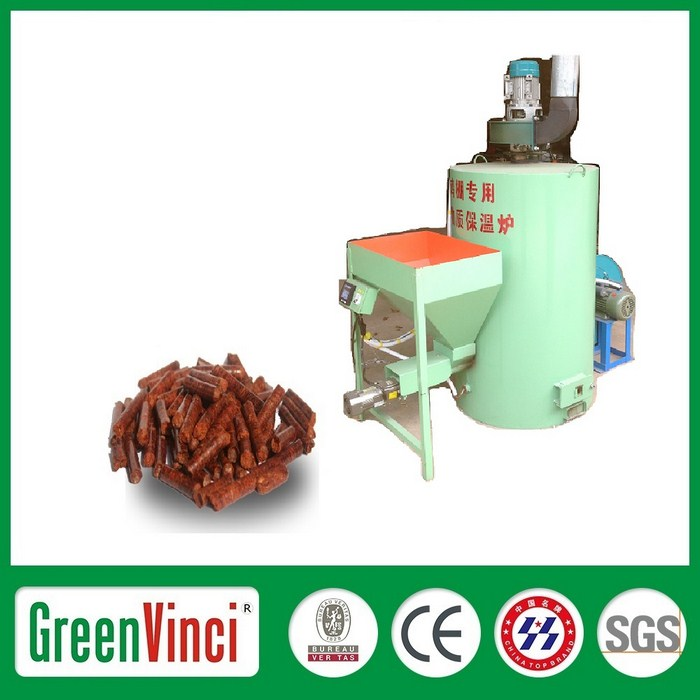

  GreenVinci pellet burner hot air generator is a best option to farming, greenhouse, livestock, breeding insulation needs and other aquaculture hot air use, central air condition and heating spaces. It is the most advanced hot air supply system. It is operated with wood pellet (biomass pellet) providing pure hot air with ozone air antivirus and spectruin antivirus. It would be great help breeding industrial keep away Pathogenic and Influenza conditions by our hot air generator which all functions in one. The direct combustion, gasification combustion, dust collect by cyclone, ozone air antivirus and spectruin antivirus all these process are  completed in a closed system, it is environmental protection effcient and energy - saving.

Product details:

Applicable fuel: 6-12mm pellet fuel / Wood Chips

Output power :25000 kcal, 25Kgs / 4 House --- Biomass Pellet Fuel

Size: 1.8 Mts High, 150 Kgs / Set With roller

Control:PLC Control System

Air Flow:Max. 3500 M3/Min in 120 ℃.

Function: With Ozone Air Antivirus and Spectrum Antivirus

Specification:

1. High efficiency and energy - saving: Our biomass hot air generator using gasifacation ways to have complete combustion, the thermal efficiency can reach more than 90%; the furnace body with a multi - return structure maximally increase the heat transfer area, so the heat can be completely conversion;

2. Environmental protection: the operated fuel are biomass pellet, affordable, worry - free about wide variety of sources; special gasification chamber can make the fuel material into half - full gasification combustion, no need to set up the tall chimney, and confugured the special dust removal device, no visible smoke emissions.

3. Intelligent control: we adopt microcomputer one - button operation, automatic feed automatic ignition, with the setting temperature, start and stop cycle, and fault alarm function, simple and easy operation.

4. Safe and labor save: Automatic feed automatic ignition, only feeding 1 - 2 times per day, the confuguration of the drawer type hopper, easy and simple clean up, greatly reduce labor intensity.

Item No. & Specification:

 Item No.

Air

Power

Area

Out Power

GV-5-PF

30-120℃/1500M3/h

1.5KW

30 SQM

16000 Kcal/h

GV-10-PF

30-120℃/2500M3/h

2.2KW

60 SQM

24000 Kcal/h

GV-15-PF

30-120℃/3500M3/h

3.0KW

90 SQM

32000 Kcal/h

GV-20-PF

30-120℃/4500M3/h

3.0KW

120 SQM

40000 Kcal/h
