Rice hull , rice husk Biomass Gasifier Provide heating for boiler ,dryer , industry furnace

FOB Reference Price:Get Latest Price
US $6,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GREENVINCI
Model Number:
GV-60-G
Voltage:
220/380/415V , 50HZ
Power(W):
1.9KW
Weight:
700KG
Dimension(L*W*H):
152x142x185cm
Certification:
CE/ SGS/ BV
Product model:
GV-30-B
Out Power:
300000Kcal
Applicable Fuel:
Rice husk/sawdust
Fuel consumption:
104kg/h
Efficiency:
90%
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year for whole machine
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case or per customer request
Port
Foshan / Guangzhou / Shenzhen
Lead Time :
15-30days after deposit

Product Introduction

Rice husk burner has the features of reasonable structure, automatic feeding, full combustion, high thermal efficiency, no pollution, low emission, compact structure, easy to install, small space usage, low running costs and other characteristics. It is the best replace fuel of electricity, fuel, gas, coal-fired boiler combustion equipment.



Product Parameter



Product Feature

1)  Easy to operate and use, the machine adopts PLC control panel which can realize          small fire-middle fire-big fire. Customize electrical components according to                    customer’s requirements, there are domestic components and imported components      available, we will offer free replace parts within one year because of quality problem.

2)  The combustion chamber adopts 3-layer thermal insulation, the inner furnace adopts      high aluminum refractor, anti-souring and high temperature resistance. Outside of          the chamber, it uses air cooling system, make sure the furnace have long usage life,      and operation more stable.

3)  The combustion chamber adopts 3-layer thermal insulation, the inner chamber                adopts high aluminum refractory, anti-souring and high temperature resistance.              Outside of the chamber, it uses air cooling system, make sure the chamber have            long usage life, and operation more stable.

4)  This machine adopts 3 times oxygen supply so that more complete combustion, High      thermal conversion efficiency, heat efficiency can reach 90% generally, less ash,            stable continuous operation, easy to operate and maintenance.

5)  High thermal conversion efficiency, heat efficiency can reach 80%-85% generally,          stable continuous operation, easy to operate and maintenance.



Production Details

1) Blower#1(1.5KW): blower the rice husk and air into the chamber



2)  Blower#2(1.5KW): secondary air supply, oxygen into chamber





3)  High temperature assistance nozzle





4)  Air inlet valve: thirdly air supply, adjust the air flow, usually half the flow is enough





5)  Door stopper: to prevent the smoke



6)  Electric panel











Economic Analysis

Fuel name

Diesel

Gas

Electricity

Rice husk/Sawdust

Heat Value

10200kcal/kg

8500kcal/m3

860kcal/kw

3200kcal

Price

8RMB/Kg

4.5RMB/M3

1.1RMB/Kwh

0.4RMB/Kg

Burning consumption

65kg

76.9m3

780kw

165kg

Fuel costs

520RMB

346 RMB

856 RMB

66 RMB

Biomass fuel efficient than

87%

81%

92%

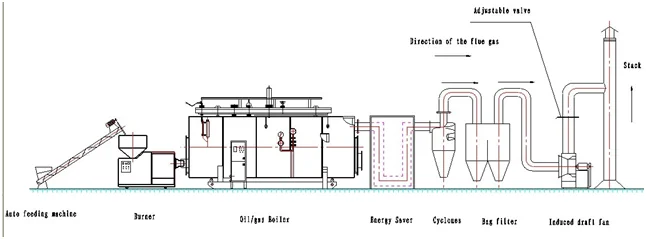

Conversion program



Certification











FAQ

1)  About Payment Term: The payment term can be negotiated and agreed upon between the Parties. Usually        T/T 30% deposit after order confirmed, the balance paid before delivery.

2)  About Lead Time : Normally in 3 weeks after deposit received.

3)  About Shipping port: Guangzhou or Foshan, per your request.

4)  About Discounts : We offer discount for long term cooperated customers.

5)  About Product Electricity Voltage and Frequency : we can customized as your requirement.

6)  About Shipping Service: We have good relationship with many freight big forwarders, We can provide competitive LCL and FCL shipping service
