60-160 kg per hour melting capacity crucible aluminum electric resistance melting furnace

FOB Reference Price:Get Latest Price
US $6,315-8,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Resistance Furnace
Usage:
Melting Furnace
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GreenVinci
Model Number:
OP250
Voltage:
380V
Power(W):
60KW
Dimension(L*W*H):
1400*980mm
Weight:
2000kg
Certification:
CE/SGS/ISO
Warranty:
1 YEAR
After-sales Service Provided:
Engineers available to service machinery overseas
Melting Material:
60-80kg/h
Liquid Capacity:
250kgs
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case /safety packing
Port
FoShan/GuangZhou/ShenZhen
Lead Time :
25 days after deposit

GreenVinci Resistance aluminum melting furnace is a Crucible furnace, with burning, melting, insulation capabilities , is currently the most perfect design, highest degree of automation, with a number of patented melting furnace. Mainly used in melting or smelting aluminum, zinc, lead, tin, cadmium and other low-melting non-ferrous metals and alloys, and supporting the use of die-cast function well; also can be used for liquid aluminum insulation, in addition to gas, refining. With the advantage of high acceptance by operators , environmental friendly ,low operating cost, simple operation and maintenance .

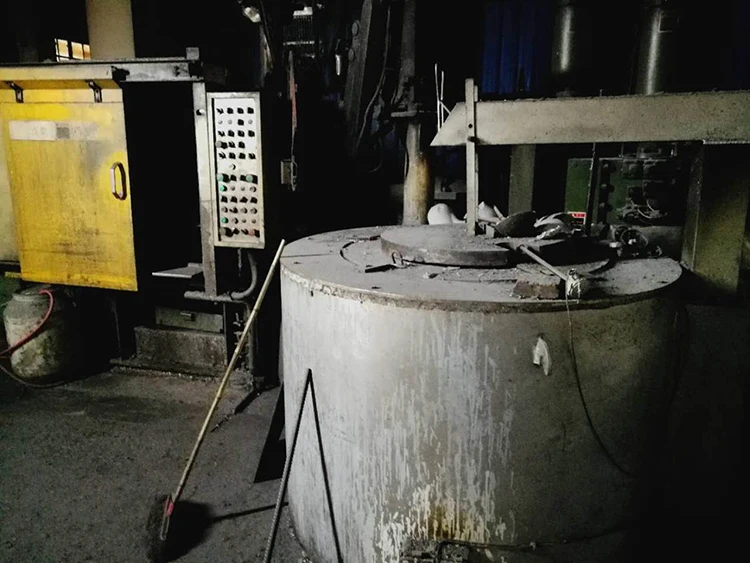

Widely supporting mechanical and aluminum die-casting plant, adapted to industrial aluminum, zinc, lead, tin, cadmium and other low melting point non-ferrous metals melting and insulation , but also as aluminum scrap, industrial aluminum and various metal scrap melting into the ingots.



Product Feature

(1) as an energy source of energy, tons of aluminum melting heat preservation costs about         five hundred degrees, is one of the most clean energy recognized by the state                           environmental protection department.

(2) the furnace body structure is strong, the internal grade refractory material, durable and           durable, the outside temperature of the furnace body is not higher than 60 degrees.

(3) the integration of configuration, SCR, with lack of protection, phase discrimination, slow         start, slow power shutdown, radiator over temperature alarm, quick detection, current             limit, voltage feedback, overcurrent protection, serial working status indication function.

(4) the configuration of Sweden imported high temperature heating belt, compared with the         same type of hair with a long service life of more than one year. Equipped with aluminum       water leakage alarm power-off device, even accidentally leaked aluminum water is not             too much, After change the crucible, lift the alarm can continue to use.

(5) the temperature control system uses the artificial intelligence temperature controller, the         temperature is accurate, the analog quantity electric current, the switch output, the                   intellectualized control.

(6) advanced design, won a number of patent certificates, not because of the heating of the         original short circuit and burning.

(7) the crucible material can be arbitrarily selected according to the requirements of the                 customers.

(8) humanized design, small footprint, simple operation, no maintenance and maintenance.
