Gas/oil fired scrap meltal melting furnace for aluminum ingots and die casting

FOB Reference Price:Get Latest Price
US $6,315-8,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Resistance Furnace
Usage:
Melting Furnace
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GreenVinci
Model Number:
GP250
Voltage:
3 Phase 380V
Power(W):
60KW
Dimension(L*W*H):
1400*980
Weight:
2000kg
Certification:
CE/SGS/ISO
Warranty:
1 YEAR
After-sales Service Provided:
Engineers available to service machinery overseas
Melting Material:
60-80kg/h
Liquid Capacity:
250kgs
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case /safety packing
Port
Foshan/Guangzhou /Shenzhen
Lead Time :
25 days after deposit

Gas/Oir Fired Aluminum Melting Furnace

1.      Product Introduction of the gas/oil fired aluminum melting furnace

Gas/oil fired aluminum melting furnace is a heat accumulating type of furnace. The furnace is used for the die casting machine or other casting machine, for melting aluminum and liquid aluminum insulation.





2.      Product Parameter of the gas fired aluminum melting furnace

Item no.

Melting capacity

Liquid alu capacity

Burner Power

Match Model

GP-250

60-80kg/h

250kg

3-5

160-280

GP-300

80-100kg/h

300kg

5-10

250-350

GP-400

90-110kg/h

400kg

8-20

280-400

GP-500

110-140kg/h

500kg

8-20

350-500

GP-600

140-160kg/h

600kg

12-20

500-800





3.      Product Feature of the gas/oil fired aluminum melting furnace

1)    natural gas as an energy source, tons of aluminum melting heat preservation cost of about 80 cubic meters of natural gas, is one of the most clean energy recognized by the state environmental protection department.

2)    the furnace body structure is strong, the internal grade refractory material, durable and durable, the outside temperature of the furnace body is not higher than 60 degrees.

3)    equipped with aluminum water leakage alarm power-off device, even accidentally leaked aluminum water is not too much, for Guo, lift the alarm can continue to use.

4)    the temperature control system uses the artificial intelligence temperature controller, the temperature is accurate, the analog quantity electric current, the switch output, the intellectualized control.

5)    the crucible material can be arbitrarily selected according to the requirements of the customers.

6)    can be customized according to the client's 160-800 ton model, and can be used in conjunction with automatic soup machine.



4.      Production Details





 .jpg

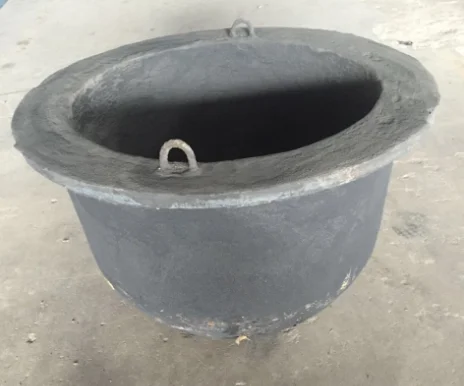

casting iron crucible.png

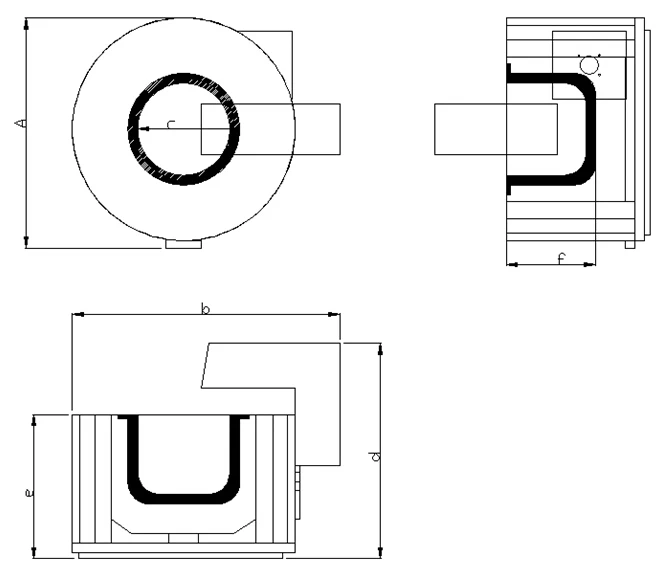

5.     size parameter table





 .png







6.       Product Qualification











7.       Deliver, Shipping And Serving





 paste-pic-dp_uuid_g339k





8.       FAQ

1)     What is your advantage to compared to others?

 First, we provided turnkey solution, Cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.

Second, we have Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking



2)     If our machine meets fault, how could you help us to solve it?

For failures caused by using process, we will send our after sales engineer to discuss with you, and you should provide the video how the machine is broken, we will find out which part of the machine is broken and then we will send you the broken part by express.



3)     What is your warranty?

Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.

All products sold by GreenVinci in warranty period, we will provide you the spare parts for free. Our engineer will help you do the after sales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
