Medium frequency electric frequency high speed induction melting furnace for aluminium

FOB Reference Price:Get Latest Price
US $5,800-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GREENVINCI
Model Number:
EG-200/330/500/650
Voltage:
220/380/415V , 50HZ
Power(W):
≤385KW/1T aluminum liquid
Dimension(L*W*H):
OD130-146*H95-120cm
Weight:
1000-2000KG
Certification:
CE/ SGS /BV
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
blue color or customized
Melting capacity:
50-220kgs/hr
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case or customized
Port
Foshan/Guangzhou /Shenzhen
Lead Time :
20 days after deposit

1.      Product Introduction of the electric induction melting furnace

Greenvinci electric induction melting furnace is the newest electric induction furnace in market. It has made significant improvements in safety, reliability, durability and energy saving. The operation is harmless to the human body, the machine is stable and Working long hours without fail. It greatly improves the melting ability in unit hours, thus reducing the customer cost.





2.      Product Parameter of the electric induction melting furnace



Item No.

Capacity of crucible      (KG)

MAX melting capacity   (KG/H)

Aluminum supply for die casting   (KG/H)

Power   Consumption/1T aluminum        (KW/T)

Installation Power (KW/H)

Dimensions   (CM)

GV-200-EI

200

100

50-80

≤385

45

Φ130*H95

GV-330-EI

330

140

80-120

≤385

60

Φ130*H113

GV-500-EI

500

200

130-180

≤385

90

Φ142*H116

GV-650-EI

650

250

160-220

≤385

110

Φ146*H120





3.      Product Feature of the electric induction melting furnace

(1)     IGBT transistor all solid state super audio technology.

A.      The induction heating efficiency, uniformity and stability of silicon carbide/graphite crucible have been increased by 5-8 times;

B.      It completely solved the problem of the crucible leakage, and the life of the crucible was twice as long as the second generation of industrial induction furnace;

C.      The life of Induction coil is three times as long as the second generation of industrial induction furnace;

D.      The radiation is far lower than the radiation from the cell phone, ensuring that the equipment operators are shielded from electromagnetic damage;

E.       The radiation is far lower than the radiation from the cell phone, ensuring that the equipment operators are shielded from electromagnetic damage;

F.       It completely solves the problem that electrical components are easy to be damaged.

(2)     International advanced DSP digital intelligent control technology.

A.      Built-in prevent dry burn speed detection function to ensure the induction coil and load safe and reliable;

B.      Do not produce high harmonics, do not pollute the power grid, do not interfere with other equipment, transformer, switch does not heat;

C.      The designed life of whole machine is for 10 years.

(3)     Dynamic inductance recognition technology.

A.       Accurate dynamic inductance recognition technology;

B.       Built-in intelligent PID closed-loop control technology, measuring voltage, current and power in real time, accurately running the most efficient frequency.

(4)     Anti-electric shock isolation wall technology.

A.      TOKOtech anti-shock isolation wall technology is adopted;

B.      Can instantly isolate high voltage from the human body, absolutely safe.

(5)     Aerospace material housing technology.

A.      Moisture-proof, anti-collision, anti-aging, high temperature resistance;

B.      The maximum effect of the alternating magnetic field is on the heated object, and its energy efficiency and energy saving are higher.

(6)     The design of the leakproof aluminum leakage.

A.      The design of the leakproof aluminum leakage;

B.      The problem of burning the cable is solved thoroughly.

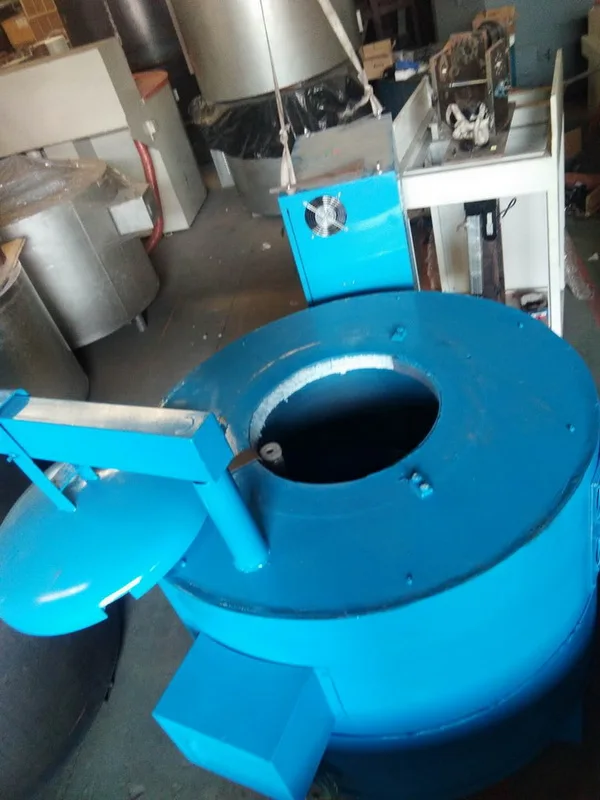

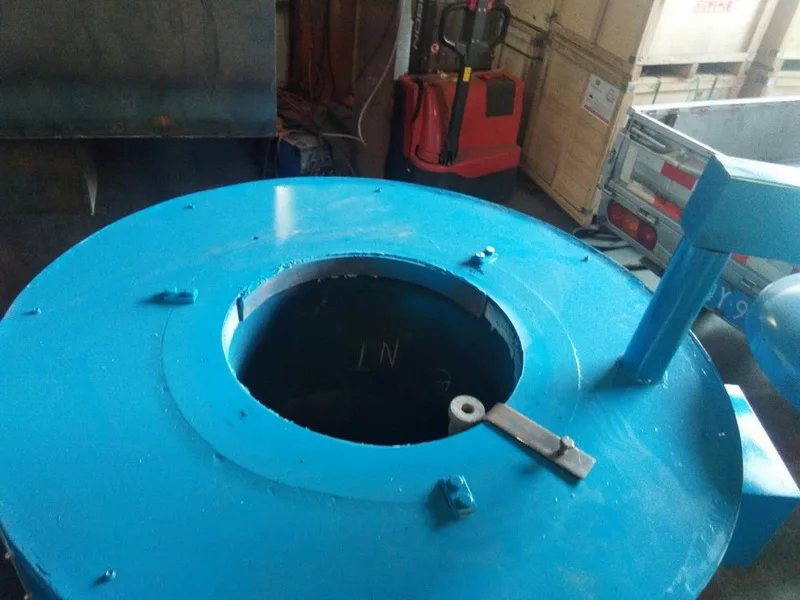

4.      Production Details of the electric aluminum melting furnace





 .png








5.     Operation of the electric induction melting furnace

1)       Preheat

After the new crucible or stop furnace is used again, it should take 2-4hrs to preheat the empty crucible to 300 degrees; then heat up 250 degrees per hour till 900 degrees, 30 minutes for insulation. Then descend to 600 degrees, add dry scrap, and begin to heat up normally.

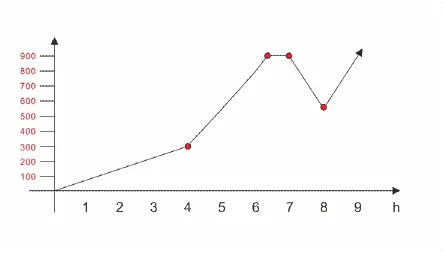

                     The heating curve of the crucible





 .png











2)       Feeding

A.      The metal must be tried before feeding;

B.      It should be laid down gently while feeding. Do not throw the metal ingot into the crucible, so as not to damage the crucible;

C.      When adding liquid metal, avoid overfilling, generally not exceeding 80% of the capacity of the crucible.

3)       Empty the crucible

A.      For cleaning The metal solution in the crucible should be emptied when the crucible is removed due to the removal of the slag or the maintenance of the crucible furnace.

B.      When the crucible is emptied, the metal solution in the crucible can be poured into the mold to form aluminum ingots for later use;

C.      If the metal solution is retained in the crucible, it will expand the crucible directly due to expansion next time.







6.       Product Qualification of the electric induction melting furnace

.png



























7.       Deliver, Shipping And Serving of the electric induction melting furnace

paste-pic-dp_uuid_g339k



paste-pic-dp_uuid_sx67q





8.       FAQ

Why Choose Us ?
1) We’re the leading manufacturer of biomass burner , hot air generator ,Aluminum melting furnace ,
factory located in Foshan.
2) We are exporting to many countries and area , we have distributor in Malaysia , Thailand , India and Ukraine .

3) We have plenty of experience in various applications nearby ,can show you the running machine in our customer ‘s place any time .

4) Competitive price, high quality and quick delivery.
5) Engineers are able to serve oversea.
